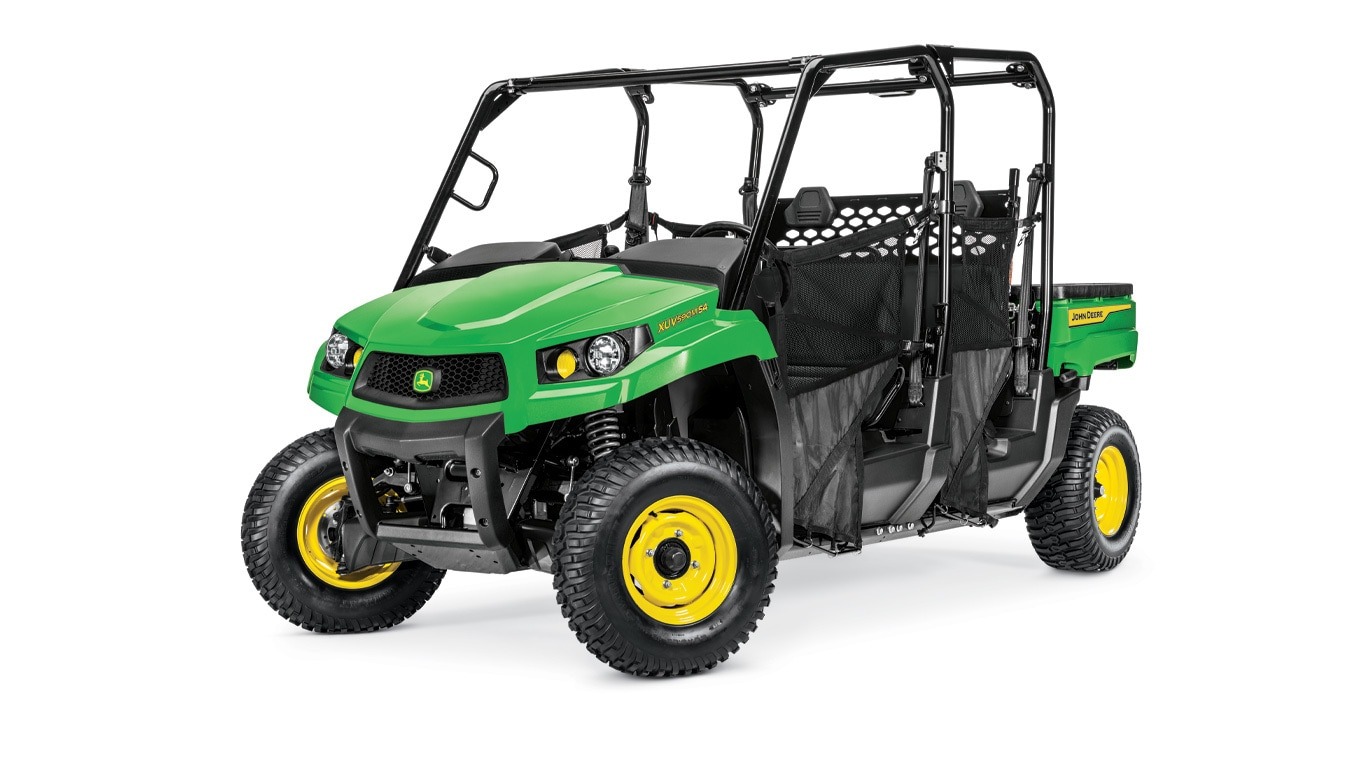

John Deere XUV590M S4 Gator™ Utility Vehicle
Original price was: $30,140.01.$19,374.00Current price is: $19,374.00.
🚚 Delivery Options
- Multi-passenger capability for four people
- Our fastest Mid-Size XUV with power steering
- Easier shifting, with integrated park position
- New electronic switch for instant 4WD engagement
Features
Collapse All
Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
The Gator™ XUV Mid-Size Crossover Series Utility Vehicles have a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.
Key elements of the drive system include:
Variable-speed drive
Variable-speed drive (shown on XUV590 engine)
The variable-speed drive consists of two clutches and a drive belt:
- Drive clutch is attached to the engine.
- Driven clutch is attached to the transaxle.
Features include:
- Ability to creep along slowly to maneuver in tight spaces
- Standard full-clutch enclosure with a high intake and exhaust ensures a dry belt when crossing water
- High-speed fan on drive clutch provides longer belt and clutch life by keeping components cool
- TEAM® industry clutches provide high performance and longevity
How the variable-speed drive works:
- As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
- As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
- With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
- The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
Four-wheel drive (4WD), transaxle, mechanical front-wheel drive (MFWD), and constant-velocity (CV) shafts
XUV590 transaxle
XUV560/XUV590 MFWD
4WD
- Selectable 4WD system with a limited slip front differential and dash-mounted electronic rocker switch
- Provides exceptional traction in challenging conditions
- Maintains turf-friendly operation in two-wheel drive (2WD) mode
- Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
- More control descending hills with 4WD engaged, as all four wheels help slow the vehicle down
- Clutch engagement still necessary to prevent free coasting
Transaxle
- Low, high, neutral, reverse, and park transaxle
- Automotive-style, integrated park position in transmission
- To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.
- Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
- High range for maximum vehicle speed
- Cast-aluminum design for lower weight
- Helical forward and reverse gears are used for quiet operation
- Rear traction assist (differential lock) is controlled with an electronic rocker switch
- NOTE: Locked differential design may increase scuffing of the turf during turns because the rear wheels are turning at the same speed through a turn.
- Contains gear-case for transferring power to the MFWD
- Splined shaft interfaces for maximum torque transfer and durability
- All drive gears machined from highest grade gear steel
- Vertically oriented oil drain for easy maintenance
- Protected by a skid plate
MFWD
- Electronically selectable by the operator
- Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
- Near instantaneous torque to the front wheels after engaging switch
- Vertically oriented oil drain for easy maintenance
- Protected by a steel skid plate and frame
Drive shafts
- Front and rear CV shaft diameter measures 23 mm (0.9 in.) and designed for high engine torque
- Propshaft (transaxle to MFWD shaft) diameter measures 23.8 mm (0.94 in.) and designed for high engine torque
- All CV shaft joints are maintenance free and protected by exclusive inboard and outboard thermoplastic elastomer (TPE) boots for durability. TPE material is more puncture resistant than neoprene, which is used by many competitors.
TEAM is a trademark of TEAM Industries.
Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
586-cc (35.8-cu in.) gasoline engine
Radiator
The Gator™ XUV590E and XUV590M Crossover Series Utility Vehicle is powered by a 586-cc (35.8-cu in.), inline twin-cylinder, electronic fuel-injected (EFI) gasoline engine. The engine is electronically controlled through an engine control unit (ECU) to ensure optimal engine performance.
The engine offers the following performance and reliability features:
- 23.8 kW (32 hp*) at 5600 rpm
- 77 km/h (48 mph) top speed
- Electronic fuel injection (EFI) with engine control unit (ECU)
- Liquid cooled
- Designed for cold-weather starting (tested to -28.9°C [-20°F])
- Wet-sump lubrication system
- Spin-on oil filter and oil pan drain accessible through skid plate for easy servicing
- High air-flow air filter
- 875-W (65 maximum amp) charging system for accessory capability (see engine section for alternator output curve)
- Spark-arresting muffler is United States Forest Service (USFS) approved
- Low fuel consumption and large 28-L (7.4-U.S. gal.) fuel tank
- Environmental Protection Agency (EPA) and California Air Resources Board (CARB) compliant
* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.
Designed for all-day comfort with many vehicle conveniences
Instrument panel and backlit switches
Sealed under-hood storage
Ergonomically placed controls
In-dash cup holders and sealed glove box
S4 optional under-seat storage
- Display features include:
- Speed
- rpm
- Fuel
- Mechanical front-wheel drive (MFWD)/rear diff-lock
- Gear position
- Hour meter
- Service interval warning light
- Operator-centric design provides class-leading ergonomics and comfortable seats
- Easy entry/exit and pass through for operator and passenger
- Optimal seating position provides more legroom
- Automotive-like ergonomics
- Excellent comfort while driving
- Best-in-class sealed storage volume of 34 L (9 gal.) with a large in-dash glove box and under hood storage. An additional 34 L (9 gal.) of under-seat storage is available on the S4 models.
- Hinged hood rotates open without tools for access to storage
- Side-by-side seating provides ample room for one operator and one passenger
- Seats tilt forward for ease of service and to keep dry during outdoor storage
- Two cup holders are located within reach of the operator’s station
- Standard 12-V direct current (VDC) outlet is conveniently located on the instrument panel
- Seven predrilled dash switch locations with snap out caps for various electrical accessories
- Occupant protective structure (OPS) with three-point seat belts and passenger side grab handle located on front post
- Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear, neutral, or park.
Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
The cargo box consists of a high-density polyethylene copolymer composite material that eliminates rust, dents, and reduces noise. This large, one-piece design has rounded inside corners to ensure material removal when tilted. The composite box is highly ribbed and supported with a welded, steel-ladder structure to ensure hard-driving performance and longevity. The three highly styled exterior pieces are made of TPO for extra durability.
Cargo box tailgate
Tailgate handle
Tailgate pivot and removal feature
Removable lanyards
The tailgate can be opened or removed for easier cleanout and to carry longer items. It features truck-like performance and can be operated with one hand.
The tailgate’s pivot point is made of hardened steel for durability and designed for tool-free removal. The standard lanyards can also be disconnected without tools to remove the tailgate for convenient loading and unloading tasks.
Cargo box tilt and removal
Integrated handle for manual cargo box tilt (both sides)
Tilted cargo box
The cargo box ease of use is critical to performing tasks quickly and efficiently. Starting with the truck-style tailgate, the removal of content in this cargo box could not be easier. The manual release also functions as the lift lever, done in a smooth, one-step motion. It can even be tilted from both sides of the vehicle. To reduce the overall effort of lift, the pivot point of the cargo box is closer to the center. The combination of easy-to-use attributes makes this cargo box best-in-class.
For servicing the vehicle’s systems, the cargo box is easily removable. With the removal of two bolts, the cargo box can easily be detached from the vehicle frame.
Integrated tie-down points
Integrated tie-down point in cargo box bed
Additional tie-down points
The cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:
- Flip-up D-shaped rings in all four corners inside the cargo box bed
- Multiple points along the edge of the cargo box side walls
- Tie-down bars on either side of the cargo box with optional cargo box rail kit. This kit also provides a mounting system using accessories that possess the 25.4-mm (1-in.) quick clamp.
Optional accessories
Cargo box rail system
Box mat
Cargo box wall extensions (shown on RSX)
Optional accessories for the cargo box include (see price pages or JDConfigurator for complete list):
- Cargo box rail system
- Cargo box mat
- Cargo box wall extensions
- Spare tire rack
- Bucket holder
Specifications
| Length | 82 cm (32.3 in.) |
| Width | 120.9 cm (47.6 in.) |
| Depth | 29.7 cm (11.7 in.) |
| Volume | 0.25 m3 (8.9 cu ft) |
| Weight capacity | 227 kg (500 lb) |
| Dump angle Bed height (from ground) |
45 degrees
76.3 cm (30 in.) |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
XUV front suspension detail
To complement the comfortable operation station, the XUV560 and XUV590 Series are equipped with four-wheel independent suspension. This unique suspension set-up provides an unparalleled ride over challenging terrain and excellent handling through corners.
The engineering team, in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, built a capable suspension system for class-leading operator comfort no matter what the terrain.
Dual A-arm front suspension features include:
- Dual, wide arch A-arm design provides maximum front-wheel control, precise steering, and maximum ground clearance out to the wheel
- 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
- Adjustable coil-over shocks absorb the most demanding terrain
- Solid anti-roll bar with fully rubber isolated connecting links and pivots is tuned to provide the most agile and predictable handling
- Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
- Increasing vehicle width during compression for additional stability.
- High-strength ASTM 80-55-06 ductile cast-iron knuckle and upper A-arm to support the high stresses of the shocks, constant-velocity (CV) shaft, and wheels
- Automotive-style, fully boxed and welded, high-strength steel, lower A-arms to minimize unsprung mass and maximize strength
- Maintenance-free, rubber torsional A-arm pivots for long life and quiet operation
- CV shaft protection from sticks that may puncture the rubber boot
- Anti-dive front suspension geometry provides a solid platform for confident braking
- Optimized steering geometry using ADAMS CAR simulation to minimize steering effort and maximize terrain feedback
XUV rear suspension detail
Independent rear suspension features include:
- 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
- Unique, independent rear-suspension design ensures a great ride and protection for the CV shafts
- Adjustable coil-over shocks absorb the most demanding terrain
- Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
- Increasing vehicle width during compression for additional stability.
- High-strength ASTM 80-55-06 ductile cast-iron knuckle, lower A-arm, and upper link to support the high stresses of the shocks, CV shaft, and wheels with the toughness to survive impacts from boulders
- Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
Optional Fox™ Shocks are available to factory install
Exclusive aluminum-body, high-pressure monotube FOX racing shocks
- Fully adjustable spring preload for different driving styles
- High-pressure nitrogen gas is separated from the damping oil by an internal floating piston (IFP). The separation prevents aeration (frothing) and viscosity degradation of the oil which improves damping consistency and performance fade.
- Pressure and heat generation in the monotube is less than a traditional twin-tube shock, allowing for better vehicle control in aggressive conditions.
- The single aluminum shell of the monotube design allows for more efficient heat rejection and lower overall unsprung mass.
- Mounting the shaft end of the shock to the suspension arm lowers the unsprung mass of the suspension system, leading to improved suspension response.
NASCAR is a trademark of NASCAR. INDYCAR is a trademark of Brickyard Trademarks Incorporated. Formula 1 is a trademark of Formula One Licensing BV, a Formula One Group Company.
Power steering for excellent handling characteristics and low steering effort
XUV590M with power steering
The Gator™ XUV590M Utility Vehicles are equipped with rack and pinion steering with power steering. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort.
Automotive-type, rack-and-pinion steering features include:
Optional electric power-assist steering (EPAS) system. Features of EPAS include:
- Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
- The system is speed sensing and adjusts steering effort as the speed of the vehicle changes.
- As speed increases there is less steering assist for improved road feel.
- As speed decreases steering assist increases to give lower steering efforts for improved maneuverability.
- A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
- Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.
- Steel ball-bearings secure the steering shaft and delivers smooth, responsive operation
- Tight turn radius of 3.7 m (12.3 ft) for excellent maneuverability
- Completely sealed rack-and-pinion for long life
- Low steering ratio (lock-to-lock steering wheel rotations) provides more responsive steering and less operator input
- Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
- Ackerman steering design provides more responsive steering, decreases tire wear when used on hard surfaces and is turf friendly (see description below)
- Minimal bump steer eliminates unintended vehicle direction changes when traversing terrain and permits less feedback to the steering wheel (see description below)
The tire scrubbing, which also creates unwanted heat and wear in the tire, can be eliminated by turning the inside wheel at a greater angle than the outside one (Ackerman steering).
NOTE: Some competitors use parallel steering instead of Ackerman steering.
Bump steering defines the change in the forward steering angle (thus wheel position) as the suspension travels through its full motion. A large amount of angular change (5 degrees to 7 degrees) will alter the vehicle’s direction and excessively move the steering wheel.
Convertible cargo rack design offers additional cargo volume
The exclusive, convertible cargo rack design offers rear seating for two passengers and with a flip of a lever, expands the cargo capacity of the XUV560 S4 and XUV590 S4 by 48 percent.
The convertible cargo rack design offers the ultimate in flexibility for multi-passenger seating capacity and utility.
Most of the time a vehicle is only transporting one or two people, but at any given moment a third or fourth passenger may come along. The quick and simple convertible cargo rack can be switched back and forth in seconds with a flip of a lever. It provides comfortable rear seating with choice of ample leg room or 48 percent more cargo capacity.
Up position
Down position
Carrying multiple workshop products
Some key points about the convertible cargo rack:
- Offers additional cargo volume of 0.12 m3 (4.3 cu ft) and 90.4-kg (200-lb) capacity.
- Efficient one-step conversion from rear seat to cargo rack in 2-3 seconds (and vice-versa) can be easily done by one person
| Length | 59.7 cm (23.5 in.) |
| Width | 98.6 cm (38.8 in.) |
| Depth | 20.6 cm (8.1 in.) |
| Volume | 0.12 m3 (4.3 cu ft) |
| Weight capacity | 90.7 kg (200 lb) |
Specs & Compare
–Please Select–
Add Model
–Please Select–
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications |
John Deere XUV590M S4 Crossover Utility Vehicle |
Key Specs
| Engine power | 23.8* kW 32 hp |
|||
|---|---|---|---|---|
| Cargo box dimensions | 82 x 120.9 x 29.7 cm 32.3 x 47.6 x 11.7 in. 0.25 m3 8.9 cu ft |
|||
| Cargo box capacity (weight) | 227 kg 500 lb |
|||
| Towing capacity | 680 kg 1500 lb |
|||
| Front suspension | Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar | |||
| Rear suspension | Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel | |||
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential | |||
| Fuel capacity | 28 L 7.4 U.S. gal. |
Engine
| Type | 4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV) | |||
|---|---|---|---|---|
| Displacement | 586 cc | |||
| Power | 23.8* kW 32 hp |
|||
| Cooling system | Liquid cooled |
Drivetrain
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
|---|---|---|---|---|
| Final drive | Park, high, low, neutral, reverse transaxle | |||
| Four wheel drive | Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential | |||
| Traction assist | Positive locking, switch actuated rear differential lock | |||
| Descent control | Not available |
Suspension
| Front | Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar | |||
|---|---|---|---|---|
| Rear | Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel |
Brakes
| Type | 196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers | |||
|---|---|---|---|---|
| Park brake | Park in-transmission |
Tires / Wheels
| Front | 25×8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating aluminum alloy wheels, various colors or 26×8-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors | |||
|---|---|---|---|---|
| Rear | 25×10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating aluminum alloy wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors |
Dimensions / Capacities
| Wheelbase | 2743 mm 108 in. |
|||
|---|---|---|---|---|
| Operating weight (includes fuel/fluids) | 788 kg 1736 lb |
|||
| Length | 3658 mm 144 in. |
|||
| Width | 1435 mm 56.5 in. |
|||
| Height | 1880 mm 74 in. |
|||
| Tread centers | Front: 1220 mm 48 in. Rear: 1168 mm 46 in. |
|||
| Ground clearance | Minimum: 236 mm 9.3 in. |
|||
| Fuel capacity | 28 L 7.4 U.S. gal. |
|||
| Cargo box dimensions | 82 x 120.9 x 29.7 cm 32.3 x 47.6 x 11.7 in. 0.25 m3 8.9 cu ft |
|||
| Cargo box capacity (weight) | 227 kg 500 lb |
|||
| Payload capacity | 590 kg 1300 lb |
|||
| Towing capacity | 680 kg 1500 lb |
|||
| Hitch | Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops |
Features
| Color | Green/yellow, olive/black, TRUETIMBER® Kanati camo | |||
|---|---|---|---|---|
| Power steering | Standard | |||
| Battery / Alternator / Power port | 340 CCA 65 amp @ 3400 rpm regulated 12 VDC standard outlet |
|||
| Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
| Storage | Two cupholders, sealed underhood storage, glovebox, center console, optional under seat | |||
| Seating | Bench seat front/rear | |||
| Headlights |
Additional information
| Country of Manufacture | U.S. | |||
|---|---|---|---|---|
| Date collected |
window.specificationData = {“relatedProducts”:[{“name”:”Gator XUV560E (Model year 2021)”,”model”:”560EAM”,”id”:”560eam-gator-xuv560e-(model-year-2021)”,”listName”:”Gator XUV560E (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”11.9* kW
16 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”18.5 L
4.9 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”570 cc”},{“id”:”engine-power”,”value”:”11.9* kW
16 hp”},{“id”:”engine-cooling-system”,”value”:”Air cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels
Optional: 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating aluminum alloy wheels, yellow or 26×8-14 Maxxis Bighorn 2.0 6-ply rating yellow steel wheels”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels
Optional: 26×10-14 Maxxis Bighorn 2.0 6-ply rating yellow aluminum alloy wheels or 26×10-14 Maxxis Bighorn 2.0 6-ply rating on yellow steel wheels”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”1.86 m
72.8 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”571 kg
1259 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”2870 mm
113 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1867 mm
73.5 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 267 mm
10.5 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”18.5 L
4.9 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”408 kg
900 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow, olive/black, camo”},{“id”:”features-power-steering”,”value”:”Not available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
16 amp @ 4100 rpm, regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox”},{“id”:”features-seating”,”value”:”Bench seat”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Gator XUV560E S4 (Model year 2021)”,”model”:”560EBM”,”id”:”560ebm-gator-xuv560e-s4-(model-year-2021)”,”listName”:”Gator XUV560E S4 (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”11.9* kW
16 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”570 cc”},{“id”:”engine-power”,”value”:”11.9* kW
16 hp”},{“id”:”engine-cooling-system”,”value”:”Air cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating yellow steel wheels”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels or 26×10-14 Maxxis Bighorn 2.0 6-ply rating yellow steel wheels”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2743 mm
108 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”683 kg
1507 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3658 mm
144 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1880 mm
74 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 236 mm
9.3 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”590 kg
1300 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow”},{“id”:”features-power-steering”,”value”:”Not available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
16 amp @ 4100 rpm, regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox”},{“id”:”features-seating”,”value”:”Bench seat”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Gator XUV590E (Model year 2021)”,”model”:”590EAM”,”id”:”590eam-gator-xuv590e-(model-year-2021)”,”listName”:”Gator XUV590E (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”586 cc”},{“id”:”engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm (7.7 in.) ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating steel wheels, various colors”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”1.86 m
72.8 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”645 kg
1423 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”2870 mm
113 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1867 mm
73.5 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 267 mm
10.5 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”408 kg
900 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow, olive/black, camo”},{“id”:”features-power-steering”,”value”:”Not available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox”},{“id”:”features-seating”,”value”:”Bench seat”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Gator XUV590E S4 (Model year 2021)”,”model”:”590EBM”,”id”:”590ebm-gator-xuv590e-s4-(model-year-2021)”,”listName”:”Gator XUV590E S4 (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”586 cc”},{“id”:”engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm (7.7 in.) ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating aluminum alloy wheels, various colors or 26×8-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating aluminum alloy wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2743 mm
108 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”761 kg
1678 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3658 mm
144 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1880 mm
74 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 236 mm
9.3 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”590 kg
1300 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow, olive/black”},{“id”:”features-power-steering”,”value”:”Available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox, center console, optional under seat”},{“id”:”features-seating”,”value”:”Bench seat front/rear”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Gator XUV590M (Model year 2021)”,”model”:”590MAM”,”id”:”590mam-gator-xuv590m-(model-year-2021)”,”listName”:”Gator XUV590M (Model year 2021)”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m2
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”586 cc”},{“id”:”engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 34.93 mm (1.375 in.) diameter hydraulic twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating aluminum alloy wheels, various colors or 26×8-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating aluminum alloy wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”1.86 m
72.8 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”676 kg
1491 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”2870 mm
113 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1867 mm
73.5 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 267 mm
10.5 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”408 kg
900 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow, olive/black, or TRUETIMBER® Kanati camo”},{“id”:”features-power-steering”,”value”:”Standard”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox”},{“id”:”features-seating”,”value”:”Bench seat”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Mule 4010 Trans4x4″,”model”:”NA”,”id”:”na-mule-4010-trans4x4″,”listName”:”Kawasaki – Mule 4010 Trans4x4″,”brand”:”Kawasaki”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”Not advertised”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”2pass mode cm- 128L x 121W x 28D (0.44 m3)
2pass mod in.- 50.4L x 47.6W x 11.2D (15.6 ft3)
4pass mode cm- 77L x 121W x 28D (0.29 m3)
4pass mode in.- 30.3L x 47.6W x 11.2D (10.2 ft3)”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”363 (2pass mode); 181 (4pass mode) kg
800 (2pass mode); 400 (4pass mode) lb”},{“id”:”key-specs-towing-capacity”,”value”:”544 kg
1200 lb”},{“id”:”key-specs-front-suspension”,”value”:”Independent, Mac-Pherson strut, 3.9 in. (99 mm) travel”},{“id”:”key-specs-rear-suspension”,”value”:”Semi-Independent, DeDion axle with leaf springs and shocks, 2.8 in. (71 mm) travel”},{“id”:”key-specs-final-drive”,”value”:”High, Low, Neutral, Reverse Transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash lever actuated four-wheel drive system”},{“id”:”key-specs-fuel-capacity”,”value”:”23.8 L
6.3 gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, V-twin, DFI, OHV”},{“id”:”engine-displacement”,”value”:”617 cc”},{“id”:”engine-power”,”value”:”Not advertised”},{“id”:”engine-cooling-system”,”value”:”Liquid”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT)”},{“id”:”drivetrain-final-drive”,”value”:”High, Low, Neutral, Reverse Transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash lever actuated four-wheel drive system”},{“id”:”drivetrain-traction-assist”,”value”:”Mechanically actuated (hand lever operated) rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Independent, Mac-Pherson strut, 3.9 in. (99 mm) travel”},{“id”:”suspension-rear”,”value”:”Semi-Independent, DeDion axle with leaf springs and shocks, 2.8 in. (71 mm) travel”},{“id”:”brakes-type”,”value”:”Four-wheel hydraulic drums, sealed”},{“id”:”brakes-park-brake”,”value”:”Rear wheel, hand lever”},{“id”:”tires-/-wheels-front”,”value”:”23×11-10″},{“id”:”tires-/-wheels-rear”,”value”:”23×11-10″},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2164 mm
85.2 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”720 kg
1587 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3264 mm
128.5 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1486 mm
58.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1925 mm
75.8 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Not advertised”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”180 mm
7.1 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”23.8 L
6.3 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”128L x 121W x 28D (0.44 m3) – 2pass mode cm
77L x 121W x 28D (0.29 m3) – 4pass mode cm
50.4L x 47.6W x 11.2D (15.6 ft3) – 2pass mod in.
30.3L x 47.6W x 11.2D (10.2 ft3) – 4pass mode in.”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”363 (2pass mode); 181 (4pass mode) kg
800 (2pass mode); 400 (4pass mode) lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”603 kg
1330 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”544 kg
1200 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Not advertised”},{“id”:”features-color”,”value”:”Dark Royal Red, Timberline Green, Super Black”},{“id”:”features-power-steering”,”value”:”Available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”12 V
18 amp-hr”},{“id”:”features-instrumentation”,”value”:”Parking brake warning light, coolant temperature warning light, horn”},{“id”:”features-storage”,”value”:”2 cupholders, glovebox”},{“id”:”features-seating”,”value”:”Bench seat front/rear”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:””},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”RTV1140CPX”,”model”:”NA”,”id”:”na-rtv1140cpx”,”listName”:”Kubota – RTV1140CPX”,”brand”:”Kubota”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”18.5* kW
24.8 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”2pass mode – 136L x 132W x 29D (0.53 m3) cm
2pass mode – 53.5L x 52Wx 11.4D (18.7 ft3) in.
4pass mode – 86L x 132W x 29D (0.33 m3) cm
4pass mode – 33.9L x 52W x 11.4D (11.7 ft3) in.”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”500 (2pass mode); 300 (4pass mode) kg
1102 (2pass mode); 661 (4pass mode) lb”},{“id”:”key-specs-towing-capacity”,”value”:”590 kg
1300 lb”},{“id”:”key-specs-front-suspension”,”value”:”Independent, Mac-Pherson strut type”},{“id”:”key-specs-rear-suspension”,”value”:”Semi-Independent, DeDion axle with leaf springs and shock absorbers”},{“id”:”key-specs-final-drive”,”value”:”High, Med, Low, Neutral, Reverse Transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash lever actuated four-wheel drive system”},{“id”:”key-specs-fuel-capacity”,”value”:”23.8 L
7.9 gal.”},{“id”:”engine-type”,”value”:”4-cycle Diesel, 3-cylinder, OHV”},{“id”:”engine-displacement”,”value”:”1123 cc”},{“id”:”engine-power”,”value”:”18.5* kW
24.8 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid”},{“id”:”drivetrain-transmission”,”value”:”VHT (Variable Hydro Transmission)”},{“id”:”drivetrain-final-drive”,”value”:”High, Med, Low, Neutral, Reverse Transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash lever actuated four-wheel drive system”},{“id”:”drivetrain-traction-assist”,”value”:”Foot operated with mechanical holder rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not advertised”},{“id”:”suspension-front”,”value”:”Independent, Mac-Pherson strut type”},{“id”:”suspension-rear”,”value”:”Semi-Independent, DeDion axle with leaf springs and shock absorbers”},{“id”:”brakes-type”,”value”:”Wet-disc brake”},{“id”:”brakes-park-brake”,”value”:”Rear wheel, hand lever”},{“id”:”tires-/-wheels-front”,”value”:”25×10-12 HDWS 6-ply rating”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 HDWS 6-ply rating”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2415 mm
95.1 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”1075 kg
2370 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3480 mm
137 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1550 mm
61 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”2000 mm
78.7 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”1150 mm
45.3 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”190 mm
7.5 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”23.8 L
7.9 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”136L x 132W x 29D (0.53 m3) – 2pass mode cm
86L x 132W x 29D (0.33 m3) – 4pass mode cm
53.5L x 52Wx 11.4D (18.7 ft3) – 2pass mode in.
33.9L x 52W x 11.4D (11.7 ft3) – 4pass mode in.”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”500 (2pass mode); 300 (4pass mode) kg
1102 (2pass mode); 661 (4pass mode) lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”730 kg
1609 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”590 kg
1300 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Not advertised”},{“id”:”features-color”,”value”:”Orange, Camouglage (Realtree Hardwoods)”},{“id”:”features-power-steering”,”value”:”Available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”Not advertised”},{“id”:”features-instrumentation”,”value”:”Not advertised”},{“id”:”features-storage”,”value”:”2 cupholders, no sealed storage, open glovebox”},{“id”:”features-seating”,”value”:”Bench seat front/rear”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:””},{“id”:”additional-information-date-collected”,”value”:””}]},{“name”:”Ranger Crew 570-4″,”model”:”NA”,”id”:”na-ranger-crew-570-4″,”listName”:”Polaris – Ranger Crew 570-4″,”brand”:”Polaris”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”32.8* kW
44 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”81L x 107W x 29D (0.25 m3) cm
32L x 42W x 11.5D (8.9 ft3) in.”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Independent, Mac-Pherson strut, 8 in. (203 mm) travel”},{“id”:”key-specs-rear-suspension”,”value”:”Independent, Dual A-Arm, 9 in. (228 mm) travel”},{“id”:”key-specs-final-drive”,”value”:”High, Low, Neutral, Reverse, Park Transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Switch actuated four-wheel drive”},{“id”:”key-specs-fuel-capacity”,”value”:”34 L
9 gal.”},{“id”:”engine-type”,”value”:”4-cycles gas, single cylinder, EFI”},{“id”:”engine-displacement”,”value”:”567 cc”},{“id”:”engine-power”,”value”:”32.8* kW
44 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT)”},{“id”:”drivetrain-final-drive”,”value”:”High, Low, Neutral, Reverse, Park Transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Switch actuated four-wheel drive”},{“id”:”drivetrain-traction-assist”,”value”:”Switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Independent, Mac-Pherson strut, 8 in. (203 mm) travel”},{“id”:”suspension-rear”,”value”:”Independent, Dual A-Arm, 9 in. (228 mm) travel”},{“id”:”brakes-type”,”value”:”Four-wheel hydraulic disc”},{“id”:”brakes-park-brake”,”value”:”In transaxle”},{“id”:”tires-/-wheels-front”,”value”:”25×10-12 Carlisle AT489 on steel wheels”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Carlisle AT489 on steel wheels”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2667 mm
105 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”602 kg
1327 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3610 mm
142 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1520 mm
60 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1854 mm
73 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Not Advertised”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”254 mm
10 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”34 L
9 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”81L x 107W x 29D (0.25 m3) cm
32L x 42W x 11.5D (8.9 ft3) in.”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”567 kg
1250 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 2 in. (50 mm) rear receiver”},{“id”:”features-color”,”value”:”Solar Red, Sage Green, Camo, Super Graphite”},{“id”:”features-power-steering”,”value”:”Available”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”Not advertised / 43 amp @ 3000 rpm / 12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights”},{“id”:”features-storage”,”value”:”2 cupholders, glovebox”},{“id”:”features-seating”,”value”:”Bench seat front/rear”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:””},{“id”:”additional-information-date-collected”,”value”:””}]}],”closestComparison”:[],”currentModel”:{“name”:”Crossover Utility Vehicle”,”model”:”XUV590M S4″,”id”:”Current Model ID”,”detailURL”:”#”,”listName”:”Crossover Utility Vehicle”,”brand”:”John Deere”,”specifications”:[{“id”:”key-specs-engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”key-specs-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”key-specs-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”key-specs-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”key-specs-front-suspension”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”key-specs-rear-suspension”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”key-specs-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”key-specs-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”key-specs-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”engine-type”,”value”:”4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)”},{“id”:”engine-displacement”,”value”:”586 cc”},{“id”:”engine-power”,”value”:”23.8* kW
32 hp”},{“id”:”engine-cooling-system”,”value”:”Liquid cooled”},{“id”:”drivetrain-transmission”,”value”:”Continuously Variable Transmission (CVT) with clutch enclosure”},{“id”:”drivetrain-final-drive”,”value”:”Park, high, low, neutral, reverse transaxle”},{“id”:”drivetrain-four-wheel-drive”,”value”:”Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential”},{“id”:”drivetrain-traction-assist”,”value”:”Positive locking, switch actuated rear differential lock”},{“id”:”drivetrain-descent-control”,”value”:”Not available”},{“id”:”suspension-front”,”value”:”Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar”},{“id”:”suspension-rear”,”value”:”Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel”},{“id”:”brakes-type”,”value”:”196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 34.93 mm (1.375 in.) diameter twin-piston calipers”},{“id”:”brakes-park-brake”,”value”:”Park in-transmission”},{“id”:”tires-/-wheels-front”,”value”:”25×8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×8-14 Maxxis® Bighorn® 2.0 6-ply rating aluminum alloy wheels, various colors or 26×8-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”tires-/-wheels-rear”,”value”:”25×10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating aluminum alloy wheels, various colors or 26×10-14 Maxxis Bighorn 2.0 6-ply rating steel wheels, various colors”},{“id”:”dimensions-/-capacities-wheelbase”,”value”:”2743 mm
108 in.”},{“id”:”dimensions-/-capacities-operating-weight-(includes-fuel/fluids)”,”value”:”788 kg
1736 lb”},{“id”:”dimensions-/-capacities-length”,”value”:”3658 mm
144 in.”},{“id”:”dimensions-/-capacities-width”,”value”:”1435 mm
56.5 in.”},{“id”:”dimensions-/-capacities-height”,”value”:”1880 mm
74 in.”},{“id”:”dimensions-/-capacities-tread-centers”,”value”:”Front: 1220 mm
48 in.
Rear: 1168 mm
46 in.”},{“id”:”dimensions-/-capacities-ground-clearance”,”value”:”Minimum: 236 mm
9.3 in.”},{“id”:”dimensions-/-capacities-fuel-capacity”,”value”:”28 L
7.4 U.S. gal.”},{“id”:”dimensions-/-capacities-cargo-box-dimensions”,”value”:”82 x 120.9 x 29.7 cm
32.3 x 47.6 x 11.7 in.
0.25 m3
8.9 cu ft”},{“id”:”dimensions-/-capacities-cargo-box-capacity-(weight)”,”value”:”227 kg
500 lb”},{“id”:”dimensions-/-capacities-payload-capacity”,”value”:”590 kg
1300 lb”},{“id”:”dimensions-/-capacities-towing-capacity”,”value”:”680 kg
1500 lb”},{“id”:”dimensions-/-capacities-hitch”,”value”:”Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops”},{“id”:”features-color”,”value”:”Green/yellow, olive/black, TRUETIMBER® Kanati camo”},{“id”:”features-power-steering”,”value”:”Standard”},{“id”:”features-battery-/-alternator-/-power-port”,”value”:”340 CCA
65 amp @ 3400 rpm regulated
12 VDC standard outlet”},{“id”:”features-instrumentation”,”value”:”Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)”},{“id”:”features-storage”,”value”:”Two cupholders, sealed underhood storage, glovebox, center console, optional under seat”},{“id”:”features-seating”,”value”:”Bench seat front/rear”},{“id”:”features-headlights”,”value”:””},{“id”:”additional-information-country-of-manufacture”,”value”:”U.S.”},{“id”:”additional-information-date-collected”,”value”:””}]}} ;
Be the first to review “John Deere XUV590M S4 Gator™ Utility Vehicle”
Related products
Gator™ Utility Vehicles
Gator™ Utility Vehicles
Full-Size Gator™ XUV
Full-Size Gator™ XUV
Full-Size Gator™ XUV
Full-Size Gator™ XUV
Gator™ Utility Vehicles
Full-Size Gator™ XUV
Reviews
There are no reviews yet.
